This post will walk you through building the circuit necessary to follow along with the Azure IoT Hubs with Raspberry Pi and Node.js talk.

You can find more information on the talk itself right here:

Azure IoT Hubs with Raspberry Pi and Node.js

The completed circuit is shown here;

Parts Required

Part Qty
Breadboard 1
Red LED 1
Green LED 1
220Ω Resistor 2
Push Button 1
BME280 1
Jumper Wires 11

Building the Circuit...

Icon Image

#1 - Your Raspberry Pi

This is where we'll start, with the brain of the circuit. The Raspberry pi will connect to all of the components we'll be using, controlling LED's and reading Buttons and Temperature Sensors.

Icon Image

#2 - Add a BreadBoard

The BreadBoard will allow us to connect all of the components together, making a circuit.

Icon Image

#3 - Add a Red LED

Connect a Red LED to the two far left adjacent pins as shown.
Insert the shortest leg to the outside of the board.

Icon Image

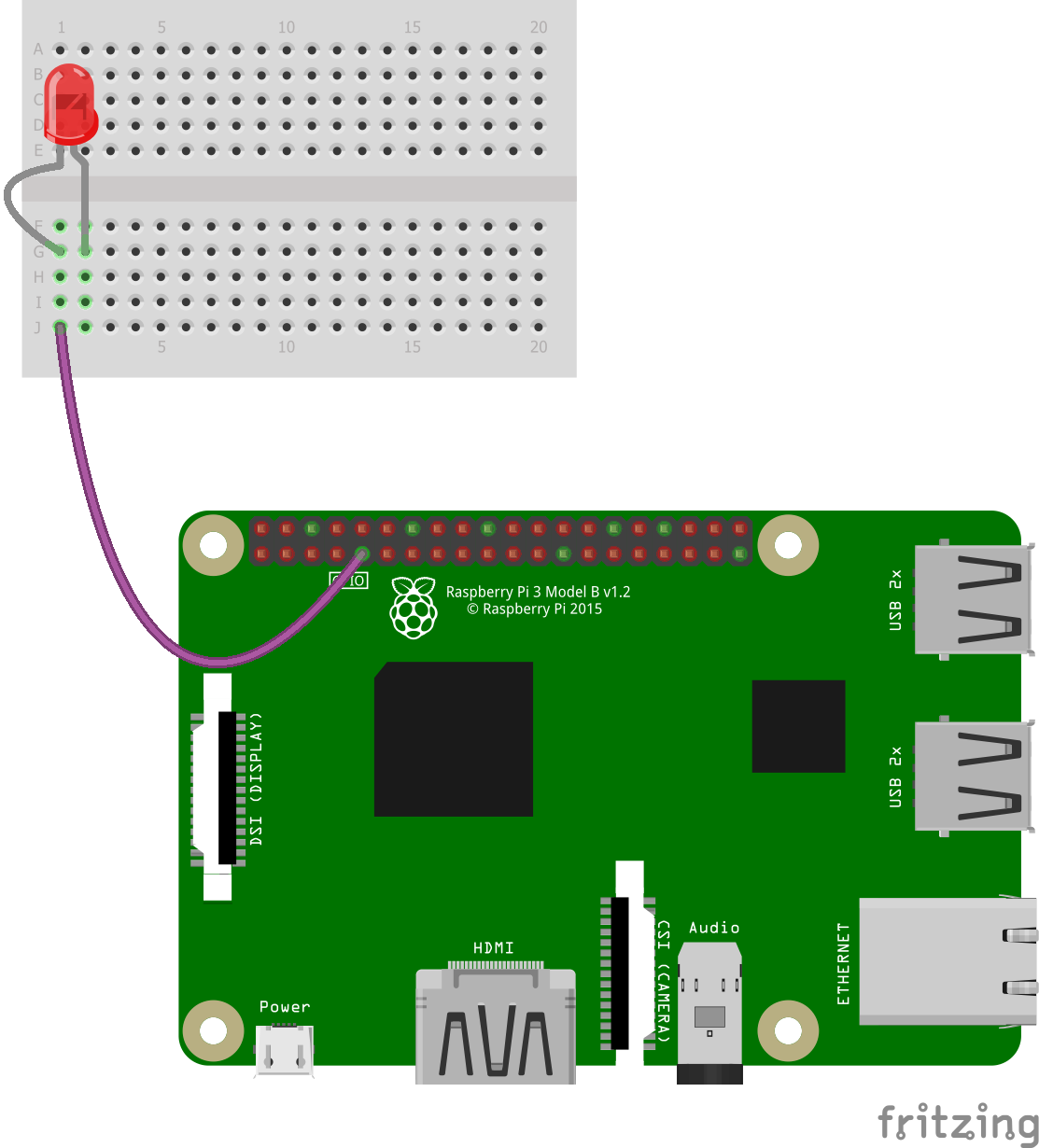

#4 - Connect Red LED Ground

Add a Purple Wire from the Red LED short Leg to Pin 9 (Ground / 0v)
This is one side of the circuit to light the Red LED

Icon Image

#5 - Add a 220Ω Resistor

Connect a resistor between the Red LED Long Leg hole and the adjacent hole.
This limits the current to the LED, preventing the Pi Pin from burning out.

Icon Image

#6 - Connect Red LED Control

Connect an Orange Wire to the hole on the empty side of the Red LED Resistor to Pin 10 (Wiring Pi Pin 16).
This is the control to turn our Red LED On and Off.

Icon Image

#7 - Add Green LED

Insert the Green LED with it’s shortest leg to the outside of the breadboard.
It’s the same column as the Red LED.
Insert it’s longest leg into the hole next to the Red LED Resistor.

Icon Image

#8 - Add another 220Ω Resistor

Connect a resistor between the Green LED Long Leg hole and the adjacent hole.
This limits the current to the LED, preventing the Pi Pin from burning out.

Icon Image

#9 - Connect Green LED Control

Connect a Grey Wire to the hole on the empty side of the Green LED Resistor to Pin 11 (Wiring Pi Pin 0).
This is the Control to turn our Green LED On and Off.

Icon Image

#10 - Add a Button

Connect the Button between the two sides of the Breadboard.
It will only fit in one orientation!
Don’t force it!

Icon Image

#11 - Add Button Control

Connect a White Wire from the Right Hand Button Leg Hole to Pin 26 (Wiring Pi Pin 11).
This is one side of our Button Circuit, and how we’re going to sense if the Button has been pressed.

Icon Image

#12 - Add Button Ground

Connect a Black wire from the Left Hand Button Leg Hole to Pin 25 (Ground / 0v).
This is the other side of our Button Circuit.

Optionally Add a BME 280

You can now add an optional BME 280 Temperature / Humidity Sensor.

We don’t strictly need this, as the code can simulate one for demo purposes…

But, if you have one… Then feel free to continue on!

Icon Image

#13 - Add the BME280

This is our Temperature / Humidity / Pressure Sensor.
Insert the BME with the body overlapping the gap, and the pins in the bottom half of the breadboard.

Icon Image

#14 - Add BME280 Power

Connect a Red Wire from the left most BME280 Pin Hole to Pin 1 (3v).
This supplies the power for the Sensor.

Icon Image

#15 - Add BME280 Ground

Connect a Brown Wire from the Pin Hole to the right of the Red Wire to Pin 6 (Ground / 0V).
This is our 0v and part of the power to the BME280.

Icon Image

#16 - Add BME280 Clock

Connect a Yellow Wire from the Pin Hole to the right of the Brown Wire to Pin 23 (Wiring Pin 14 / SCLK).
This is the clock for the SPI (Serial Peripheral Interface).

Icon Image

#17 - Add BME280 Serial In

Connect a Grey Wire from the Pin Hole to the right of the Yellow Wire to Pin 19 (Wiring Pi Pin 12 / MOSI).
This is the Serial Data from the BME280 to the Raspberry Pi.

Icon Image

#18 - Add BME Chip Enable

Connect a Green Wire from the Pin Hole to the right of the Grey Wire to Pin 24 (Wiring Pi Pin 10 / CE0).
This allows the Raspberry Pi to Enable the BME280 in case there are multiple SPI devices connected.

Icon Image

#19 - Add BME280 Serial Out

Connect a Blue Wire from the far right Pin Hole to the right of the Yellow Wire to Pin 21 (Wiring Pi Pin 13 / MISO).
This is the Serial Data from the Raspberry Pi to the BME280.

Your Circuit is Now Complete!
